矩形管

標準： EN10219-2006、EN10210-2006、ASTM A500
工藝： ISO 15614-11 、ISO 15614-14
工藝： EN10210、EN10219
鋼級： S275、S355、S460、S690、A500
公差： EN 10163-3
證書： EN 10204 - 類型 2.2 或 3.1b

以下牌號：S275、S355、S460、S690、A500，它們由EN10210、EN10219 定義。可根據要求提供其他材料牌號，請查看完整的鋼牌號列表。

冷成型結構矩型鋼管

搜索：

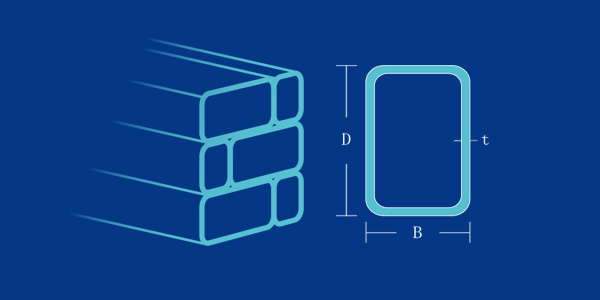

規格 mm	重量 KG/m	厚度 T/mm	橫截 A/cm²
40 x 20	1.68	2.0	2.14
40 x 20	2.03	2.5	2.59
40 x 20	2.36	3.0	3.01
40 x 20	2.94	4.0	3.75
50 x 25	2.15	2.0	2.74
50 x 25	2.62	2.5	3.34
50 x 25	3.07	3.0	3.91
50 x 25	3.88	4.0	4.95
50 x 30	2.31	2.0	2.94
50 x 30	2.82	2.5	3.59
50 x 30	3.30	3.0	4.21
50 x 30	4.20	4.0	5.35
50 x 30	4.99	5.0	6.36
60 x 30	2.62	2.0	3.34
60 x 30	3.21	2.5	4.09
60 x 30	3.77	3.0	4.81
60 x 30	4.83	4.0	6.15
60 x 40	2.93	2.0	3.74
60 x 40	3.60	2.5	4.59
60 x 40	4.25	3.0	5.41
60 x 40	5.45	4.0	6.95
60 x 40	6.56	5.0	8.36
60 x 40	7.56	6.0	9.63
60 x 40	7.57	6.3	9.65
70 x 40	4.72	3.0	6.01
70 x 40	6.08	4.0	7.75
70 x 40	7.34	5.0	9.36
70 x 40	8.50	6.0	10.8
70 x 40	8.56	6.3	10.9
70 x 50	5.19	3.0	6.61
70 x 50	6.71	4.0	8.55
70 x 50	8.13	5.0	10.4
70 x 50	9.45	6.0	12.0
70 x 50	9.55	6.3	12.2
80 x 40	5.19	3.0	6.61
80 x 40	6.71	4.0	8.55
80 x 40	8.13	5.0	10.4
80 x 40	9.45	6.0	12.0
80 x 40	9.55	6.3	12.2
80 x 50	5.66	3.0	7.21
80 x 50	7.34	4.0	9.35
80 x 50	8.91	5.0	11.4
80 x 50	10.4	6.0	13.2
80 x 50	10.5	6.3	13.4
80 x 60	6.13	3.0	7.81
80 x 60	7.97	4.0	10.1
80 x 60	9.70	5.0	12.4
80 x 60	11.3	6.0	14.4
80 x 60	11.5	6.3	14.7
90 x 50	6.13	3.0	7.81
90 x 50	7.97	4.0	10.1
90 x 50	9.70	5.0	12.4
90 x 50	11.3	6.0	14.4
90 x 50	11.5	6.3	14.7
100 x 40	6.13	3.0	7.81
100 x 40	7.97	4.0	10.1
100 x 40	9.70	5.0	12.4
100 x 40	11.3	6.0	14.4
100 x 40	11.5	6.3	14.7
100 x 50	6.60	3.0	8.41
100 x 50	8.59	4.0	10.9
100 x 50	10.5	5.0	13.4
100 x 50	12.3	6.0	15.6
100 x 50	12.5	6.3	15.9
100 x 60	7.07	3.0	9.01
100 x 60	9.22	4.0	11.7
100 x 60	11.3	5.0	14.4
100 x 60	13.2	6.0	16.8
100 x 60	13.5	6.3	17.2
100 x 60	16.4	8.0	20.8
100 x 80	8.01	3.0	10.2
100 x 80	10.5	4.0	13.3
100 x 80	12.8	5.0	16.4
100 x 80	15.1	6.0	19.2
100 x 80	15.5	6.3	19.7
100 x 80	18.9	8.0	24.0
120 x 40	7.07	3.0	9.01
120 x 40	9.22	4.0	11.7
120 x 40	11.3	5.0	14.4
120 x 40	13.2	6.0	16.8
120 x 40	13.5	6.3	17.2
120 x 50	7.54	3.0	9.61
120 x 50	9.85	4.0	12.5
120 x 50	12.1	5.0	15.4
120 x 50	14.2	6.0	18.0
120 x 50	14.5	6.3	18.5
120 x 60	8.01	3.0	10.2
120 x 60	10.5	4.0	13.3
120 x 60	12.8	5.0	16.4
120 x 60	15.1	6.0	19.2
120 x 60	15.5	6.3	19.7
120 x 60	18.9	8.0	24.0
120 x 80	8.96	3.0	11.4
120 x 80	11.7	4.0	14.9
120 x 80	14.4	5.0	18.4
120 x 80	17.0	6.0	21.6
120 x 80	17.5	6.3	22.2
120 x 80	21.4	8.0	27.2
120 x 80	25.6	10.0	32.6
120 x 80	28.3	12.0	36.1
120 x 80	29.1	12.5	37.0
120 x 100	9.90	3.0	12.6
120 x 100	13.0	4.0	16.5
120 x 100	16.0	5.0	20.4
120 x 100	18.9	6.0	24.0
120 x 100	19.4	6.3	24.8
120 x 100	23.9	8.0	30.4
120 x 100	28.7	10.0	36.6
120 x 100	32.1	12.0	40.9
120 x 100	33.0	12.5	42.0
140 x 40	8.01	3.0	10.2
140 x 40	10.5	4.0	13.3
140 x 40	12.8	5.0	16.4
140 x 60	8.96	3.0	11.4
140 x 60	11.7	4.0	14.9
140 x 60	14.4	5.0	18.4
140 x 60	17.0	6.0	21.6
140 x 60	17.5	6.3	22.2
140 x 60	21.4	8.0	27.2
140 x 70	9.43	3.0	12.0
140 x 70	12.4	4.0	15.7
140 x 70	15.2	5.0	19.4
140 x 70	17.9	6.0	22.8
140 x 70	18.5	6.3	23.5
140 x 70	22.6	8.0	28.8
140 x 80	9.90	3.0	12.6
140 x 80	13.0	4.0	16.5
140 x 80	16.0	5.0	20.4
140 x 80	18.9	6.0	24.0
140 x 80	19.4	6.3	24.8
140 x 80	23.9	8.0	30.4
140 x 80	28.7	10.0	36.6
140 x 80	32.1	12.0	40.9
140 x 80	33.0	12.5	42.0
150 x 50	8.96	3.0	11.4
150 x 50	11.7	4.0	14.9
150 x 50	14.4	5.0	18.4
150 x 50	17.0	6.0	21.6
150 x 50	17.5	6.3	22.2
150 x 100	11.3	3.0	14.4
150 x 100	14.9	4.0	18.9
150 x 100	18.3	5.0	23.4
150 x 100	21.7	6.0	27.6
150 x 100	22.4	6.3	28.5
150 x 100	27.7	8.0	35.2
150 x 100	33.4	10.0	42.6
150 x 100	37.7	12.0	48.1
150 x 100	38.9	12.5	49.5
160 x 60	9.90	3.0	12.6
160 x 60	13.0	4.0	16.5
160 x 60	16.0	5.0	20.4
160 x 60	18.9	6.0	24.0
160 x 60	19.4	6.3	24.8
160 x 60	23.9	8.0	30.4
160 x 80	10.8	3.0	13.8
160 x 80	14.2	4.0	18.1
160 x 80	17.5	5.0	22.4
160 x 80	20.7	6.0	26.4
160 x 80	21.4	6.3	27.3
160 x 80	26.4	8.0	33.6
160 x 80	31.8	10.0	40.6
160 x 80	35.8	12.0	45.7
160 x 80	36.9	12.5	47.0
180 x 80	11.8	3.0	15.0
180 x 80	15.5	4.0	19.7
180 x 80	19.1	5.0	24.4
180 x 80	22.6	6.0	28.8
180 x 80	23.4	6.3	29.8
180 x 80	28.9	8.0	36.8
180 x 80	35.0	10.0	44.6
180 x 80	39.6	12.0	50.5
180 x 80	40.9	12.5	52.0
180 x 100	12.7	3.0	16.2
180 x 100	16.8	4.0	21.3
180 x 100	20.7	5.0	26.4
180 x 100	24.5	6.0	31.2
180 x 100	25.4	6.3	32.3
180 x 100	31.4	8.0	40.0
180 x 100	38.1	10.0	48.6
180 x 100	43.4	12.0	55.3
180 x 100	44.8	12.5	57.0
200x100	13.7	3.0	17.4
200x100	18.0	4.0	22.9
200x100	22.3	5.0	28.4
200x100	26.4	6.0	33.6
200x100	27.4	6.3	34.8
200x100	33.9	8.0	43.2
200x100	41.3	10.0	52.6
200x100	47.1	12.0	60.1
200x100	48.7	12.5	62.0
200x120	14.6	3.0	18.6
200x120	19.3	4.0	24.5
200x120	23.8	5.0	30.4
200x120	28.3	6.0	36.0
200x120	29.3	6.3	37.4
200x120	36.5	8.0	46.4
200x120	44.4	10.0	56.6
200x120	50.9	12.0	64.9
200x120	52.6	12.5	67.0
200x120	58.2	14.2	74.2
200x150	16.0	3.0	20.4
200x150	21.2	4.0	26.9
200x150	26.2	5.0	33.4
200x150	31.1	6.0	39.6
200x150	32.3	6.3	41.1
200x150	40.2	8.0	51.2
200x150	49.1	10.0	62.6
200x150	56.6	12.0	72.1
200x150	58.5	12.5	74.5
200x150	64.9	14.2	82.7
250x100	16.0	3.0	20.4
250x100	21.2	4.0	26.9
250x100	26.2	5.0	33.4
250x100	31.1	6.0	39.6
250x100	32.3	6.3	41.1
250x100	40.2	8.0	51.2
250x100	49.1	10.0	62.6
250x100	56.6	12.0	72.1
250x100	58.5	12.5	74.5
250x150	24.3	4.0	30.9
250x150	30.1	5.0	38.4
250x150	35.8	6.0	45.6
250x150	37.2	6.3	47.4
250x150	46.5	8.0	59.2
250x150	57.0	10.0	72.6
250x150	66.0	12.0	84.1
250x150	68.3	12.5	87.0
250x150	76.1	14.2	96.9
250x150	83.8	16.0	107
300x100	24.3	4.0	30.9
300x100	30.1	5.0	38.4
300x100	35.8	6.0	45.6
300x100	37.2	6.3	47.4
300x100	46.5	8.0	59.2
300x100	57.0	10.0	72.6
300x100	66.0	12.0	84.1
300x100	68.3	12.5	87.0
300x150	27.4	4.0	34.9
300x150	34.0	5.0	43.4
300x150	40.5	6.0	51.6
300x150	42.2	6.3	53.7
300x150	52.8	8.0	67.2
300x150	64.8	10.0	82.6
300x150	75.4	12.0	96.1
300x150	78.1	12.5	99.5
300x150	87.2	14.2	111
300x150	96.4	16.0	123
300x200	30.6	4.0	38.9
300x200	38.0	5.0	48.4
300x200	45.2	6.0	57.6
300x200	47.1	6.3	60.0
300x200	59.1	8.0	75.2
300x200	72.7	10.0	92.6
300x200	84.8	12.0	108
300x200	88.0	12.5	112
300x200	98.3	14.2	125
300x200	108.9	16.0	138.8
350x250	54.7	6.0	69.6
350x250	57.0	6.3	72.6
350x250	71.6	8.0	91.2
350x250	88.4	10.0	113
350x250	104	12.0	132
350x250	108	12.5	137
350x250	121	14.2	154
350x250	134	16.0	171
400x200	45.8	5.0	58.4
400x200	54.7	6.0	69.6
400x200	57.0	6.3	72.6
400x200	71.6	8.0	91.2
400x200	88.4	10.0	113
400x200	104	12.0	132
400x200	108	12.5	137
400x200	121	14.2	154
400x200	134	16.0	171
400x300	64.1	6.0	81.6
400x300	66.9	6.3	85.2
400x300	84.2	8.0	107
400x300	104	10.0	133
400x300	123	12.0	156
400x300	127	12.5	162
400x300	143	14.2	182
400x300	159	16.0	203

熱成型結構矩型鋼管

搜索：

規格 mm	重量 KG/m	厚度 T/mm	橫截 A/cm²
50 x 30	2.89	2.5	3.68
50 x 30	3.41	3.0	4.34
50 x 30	3.61	3.2	4.60
50 x 30	4.39	4.0	5.59
50 x 30	5.28	5.0	6.73
50 x 30	6.33	6.3	8.07
60 x 40	4.62	3.2	5.88
60 x 40	5.64	4.0	7.19
60 x 40	6.85	5.0	8.73
60 x 40	8.31	6.3	10.6
60 x 40	10.0	8.0	12.8
70 x 40	5.12	3.2	6.52
70 x 40	6.27	4.0	7.99
70 x 40	7.64	5.0	9.73
70 x 40	9.30	6.3	1 .80
70 x 40	11.3	8.0	14.40
70 x 40	13.3	10.0	16.90
70 x 50	5.62	3.2	7.16
70 x 50	6.90	4.0	8.79
70 x 50	8.42	5.0	10.7
70 x 50	10.3	6.3	13.1
70 x 50	12.5	8.0	16.0
70 x 50	14.9	10.0	18.9
70 x 50	17.3	12.5	22.1
80 x 40	5.29	3.0	6.74
80 x 40	5.62	3.2	7.16
80 x 40	6.90	4.0	8.79
80 x 40	8.42	5.0	10.7
80 x 40	10.3	6.3	13.1
80 x 40	12.5	8.0	16.0
80 x 40	14.9	10.0	18.9
80 x 50	6.12	3.2	7.80
80 x 50	7.53	4.0	9.59
80 x 50	9.21	5.0	11.7
80 x 50	11.3	6.3	14.4
80 x 50	13.8	8.0	17.6
80 x 50	16.4	10.0	20.9
80 x 50	19.3	12.5	24.6
80 x 60	6.63	3.2	8.44
80 x 60	8.15	4.0	10.4
80 x 60	9.99	5.0	12.7
80 x 60	12.3	6.3	15.6
80 x 60	15.0	8.0	19.2
80 x 60	18.0	10.0	22.9
80 x 60	21.3	12.5	27.1
90 x 50	6.63	3.2	8.44
90 x 50	8.15	4.0	10..4
90 x 50	10.0	5.0	12.7
90 x 50	12.3	6.3	15.6
90 x 50	15.0	8.0	19.2
90 x 50	18.0	10.0	22.9
90 x 50	21.3	12.5	27.1
100 x 50	6.71	3.0	8.54
100 x 50	7.13	3.2	9.08
100 x 50	8.78	4.0	11.2
100 x 50	10.8	5.0	13.7
100 x 50	13.3	6.3	16.9
100 x 50	16.3	8.0	20.8
100 x 50	19.6	10.0	24.9
100 x 50	23.2	12.5	29.6
100 x 60	7.18	3.0	9.14
100 x 60	7.63	3.2	9.72
100 x 60	9.41	4.0	12.0
100 x 60	11.6	5.0	14.7
100 x 60	14.2	6.3	18.1
100 x 60	17.5	8.0	22.4
100 x 60	21.1	10.0	26.9
100 x 60	25.2	12.5	32.1
100 x 80	8.2	3.0	10.44
100 x 80	8.64	3.2	11.0
100 x 80	10.7	4.0	13.6
100 x 80	13.1	5.0	16.7
100 x 80	16.2	6.3	20.7
100 x 80	20.1	8.0	25.6
100 x 80	24.3	10.0	30.9
100 x 80	29.1	12.5	37.1
120 x 50	7.72	3.0	9.84
120 x 50	10.2	4.0	12.96
120 x 50	12.6	5.0	16.0
120 x 50	14.9	6.0	18.96
120 x 50	19.3	8.0	24.64
120 x 50	23.6	10.0	30.0
120 x 60	8.20	3.0	10.44
120 x 60	8.64	3.2	11.0
120 x 60	10.7	4.0	13.6
120 x 60	13.1	5.0	16.7
120 x 60	16.2	6.3	20.7
120 x 60	20.1	8.0	25.6
120 x 60	24.3	10.0	30.9
120 x 60	29.1	12.5	37.1
120 x 80	9.64	3.2	12.3
120 x 80	11.9	4.0	15.2
120 x 80	14.7	5.0	18.7
120 x 80	18.2	6.3	23.2
120 x 80	22.6	8.0	28.8
120 x 80	27.4	10.0	34.9
120 x 80	33.0	12.5	42.1
140 x 80	10.1	3.0	12.84
140 x 80	10.6	3.2	13.6
140 x 80	13.2	4.0	16.8
140 x 80	16.3	5.0	20.7
140 x 80	20.2	6.3	25.7
140 x 80	25.1	8.0	32.0
140 x 80	30.6	10.0	38.9
140 x 80	37.0	12.5	47.1
150 x 100	12.2	3.2	15.5
150 x 100	15.1	4.0	19.2
150 x 100	18.6	5.0	23.7
150 x 100	23.1	6.3	29.5
150 x 100	28.9	8.0	36.8
150 x 100	35.3	10.0	44.9
150 x 100	42.8	12.5	54.6
150 x 100	47.7	14.2	60.8
160 x 80	11.6	3.2	14.8
160 x 80	14.4	4.0	18.4
160 x 80	17.8	5.0	22.7
160 x 80	22.2	6.3	28.2
160 x 80	27.6	8.0	35.2
160 x 80	33.7	10.0	42.9
160 x 80	40.9	12.5	52.1
160 x 80	45.5	14.2	57.9
180 x 100	13.7	3.2	17.4
180 x 100	16.9	4.0	21.6
180 x 100	21.0	5.0	26.7
180 x 100	26.1	6.3	33.3
180 x 100	32.6	8.0	41.6
180 x 100	40.0	10.0	50.9
180 x 100	48.7	12.5	62.1
180 x 100	54.4	14.2	69.3
180 x 100	60.1	16.0	76.6
200 x 100	18.2	4.0	23.2
200 x 100	22.6	5.0	28.7
200 x 100	28.1	6.3	35.8
200 x 100	35.1	8.0	44.8
200 x 100	43.1	10.0	54.9
200 x 100	52.7	12.5	67.1
200 x 100	58.9	14.2	75.0
200 x 100	65.2	16.0	83.0
200x120	19.5	4.0	24.8
200x120	24.1	5.0	30.7
200x120	30.1	6.3	38.3
200x120	37.6	8.0	48.0
200x120	46.3	10.0	58.9
200x120	56.6	12.5	72.1
200x120	63.3	14.2	80.7
200x120	70.2	16.0	89.4
200x150	21.3	4.0	27.2
200x150	26.5	5.0	33.7
200x150	33.0	6.3	42.1
200x150	41.4	8.0	52.8
200x150	51.0	10.0	64.9
200x150	62.5	12.5	79.6
200x150	70.0	14.2	89.2
200x150	77.7	16.0	99.0
250x100	21.2	4.0	26.9
250x100	26.1	5.0	33.2
250x100	33.0	6.3	42.1
250x100	41.4	8.0	52.8
250x100	51.0	10.0	64.9
250x100	62.5	12.5	79.6
250x100	70.0	14.2	89.2
250x100	77.7	16.0	99.0
250x150	24.3	4.0	30.9
250x150	30.0	5.0	38.2
250x150	38.0	6.3	48.4
250x150	47.7	8.0	60.8
250x150	58.8	10.0	74.9
250x150	72.3	12.5	92.1
250x150	81.1	14.2	103
250x150	90.3	16.0	115
260x140	30.0	5.0	38.2
260x140	38.0	6.3	48.4
260x140	47.7	8.0	60.8
260x140	58.8	10.0	74.9
260x140	72.3	12.5	92.1
260x140	81.1	14.2	103
260x140	90.3	16.0	115
260x180	33.5	5.0	42.7
260x180	41.9	6.3	53.4
260x180	52.7	8.0	67.2
260x180	65.1	10.0	82.9
260x180	80.1	12.5	102
260x180	90.1	14.2	115
260x180	100	16.0	128
300x100	30.0	5.0	38.2
300x100	38.0	6.3	48.4
300x100	47.7	8.0	60.8
300x100	58.8	10.0	74.9
300x100	72.3	12.5	92.1
300x100	81.1	14.2	103
300x100	90.3	16.0	115
300x150	33.9	5.0	43.2
300x150	43.1	6.3	54.9
300x150	54.0	8.0	68.8
300x150	66.7	10.0	84.9
300x150	82.1	12.5	105
300x150	92.3	14.2	118
300x150	103	16.0	131
300x200	37.9	5.0	48.2
300x200	47.9	6.3	61.0
300x200	60.3	8.0	76.8
300x200	74.5	10.0	94.9
300x200	91.9	12.5	117
300x200	103	14.2	132
300x200	115	16.0	147
300x200	141	20.0	180
350x250	57.8	6.3	73.6
350x250	72.8	8.0	92.8
350x250	90.2	10.0	115
350x250	112	12.5	142
350x250	126	14.2	160
350x250	141	16.0	179
400x200	57.8	6.3	73.6
400x200	72.8	8.0	92.8
400x200	90.2	10.0	115
400x200	112	12.5	142
400x200	126	14.2	160
400x200	141	16.0	179
450x250	67.7	6.3	86.2
450x250	85.4	8.0	109
450x250	106	10.0	135
450x250	131	12.5	167
450x250	148	14.2	189
450x250	166	16.0	211
500x300	77.5	6.3	98.8
500x300	97.9	8.0	125
500x300	122	10.0	155
500x300	151	12.5	192
500x300	170	14.2	217
500x300	191	16.0	243
500x300	235	20.0	300

訂購與送貨

煌港特鋼在交付過程中適用煌港交貨條件，並增加雙方將遵守適用的法律和法規要求，並不參與任何不道德商業行為。
煌港特鋼所生產的矩形管的技術交貨條件符合相應要求。尺寸和公差按照相應鋼材標準定義，工程工作符合相應標準。
矩形管配備捆紮標籤和煌港特鋼的產品標籤，以實現全面的追溯和識別。
根據相應鋼材標準，將提供對應型材料證書。

您沒有找到您正在尋找的產品？讓我們為您量身定製。

獲取方案！

煌港特鋼有限公司

香港九龍大角咀通州街123號國貿中心9樓B室
T: +852-29811161
E: sales@peakkong.com

煌港特鋼科技(廣東)有限公司

廣東省東莞市謝崗鎮莞惠公路金海工業區
T: 0769-82869307
E: admin@peakkong.com
